Measure Seal Gap Geometry in Minutes
Determine Seal Compression, Seal Fit and Door Fit on Final Assembly
January 2024, Detroit (USA)
Quality Objective
Door operation and function is paramount in the automotive industry. It is not only about closing speed anymore. Customer satisfaction and quality perception are more important than ever. The door function is and will always remain a balance of comfortable closing efforts, yet enough seal compression to satisfy wind noise and water tightness.
Seal and Seal Gap Geometry
The complex shape of the body opening, door profile, windowsills, seal shapes and installation methods are all subject to assembly tolerances. Even with recent technologies, there is the need for a accurate, quick scan to establish the geometry. This would highlight any out of tolerance elements. The measurement digitized the mating parts and allowed comparing the data to the nominal cad model. With these few measurements, the next action can be determined.-
Time is Money

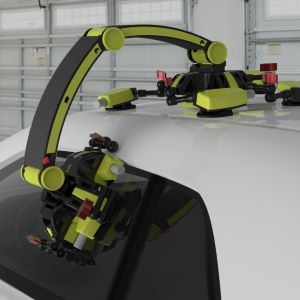

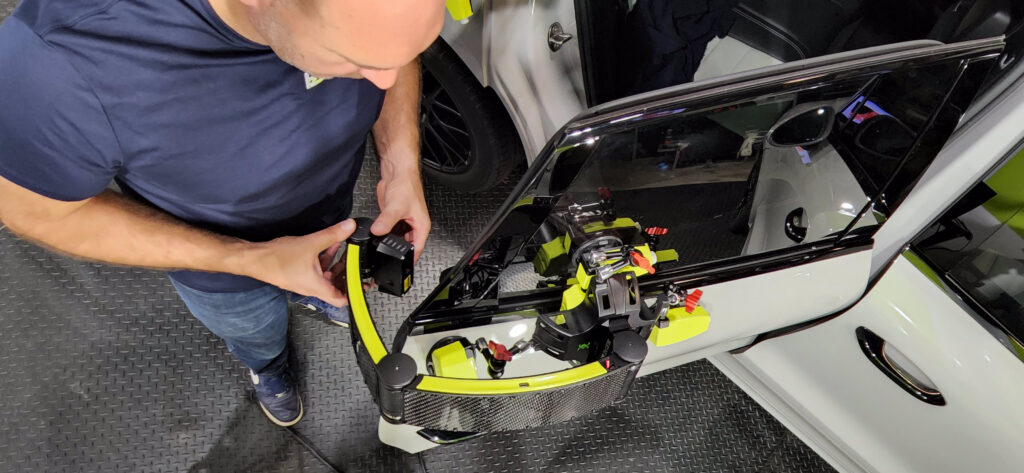

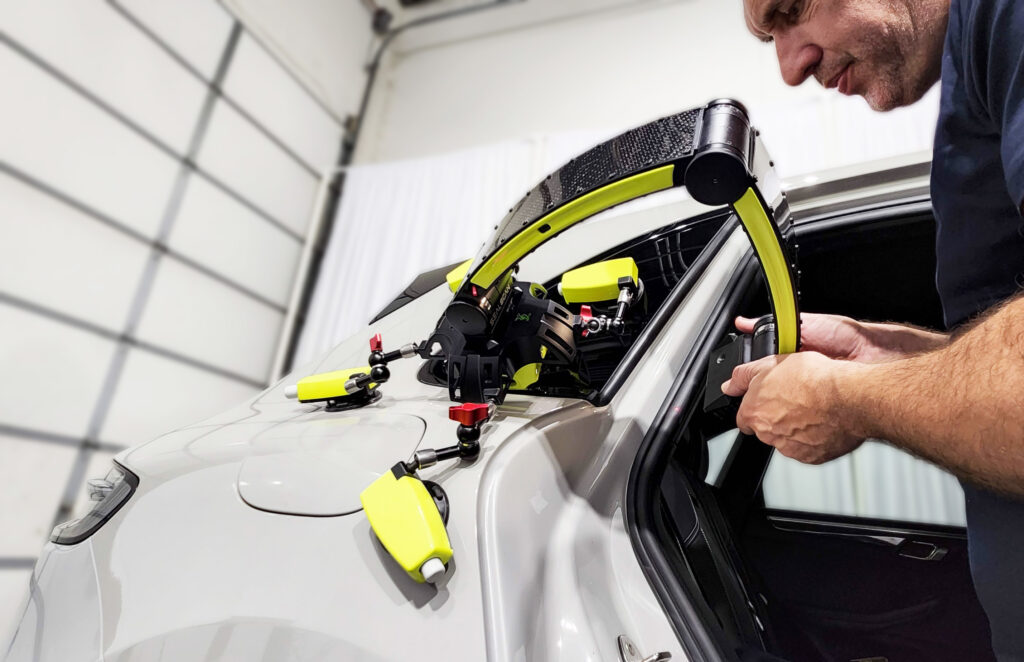

The SealScan technology allows exactly that. A fast intervention, easy-to -use technology, simple software and accessible to all. The straightforward 2D comparison allow for anybody to pinpoint the key issue. The reduced measurement time allows now to include multiple vehicle or samples not to rely on a single object to formulate a conclusion or corrective action.
