Acquisition unit capable of recording analog signals from any sensor and integrate recordings with other pod signals

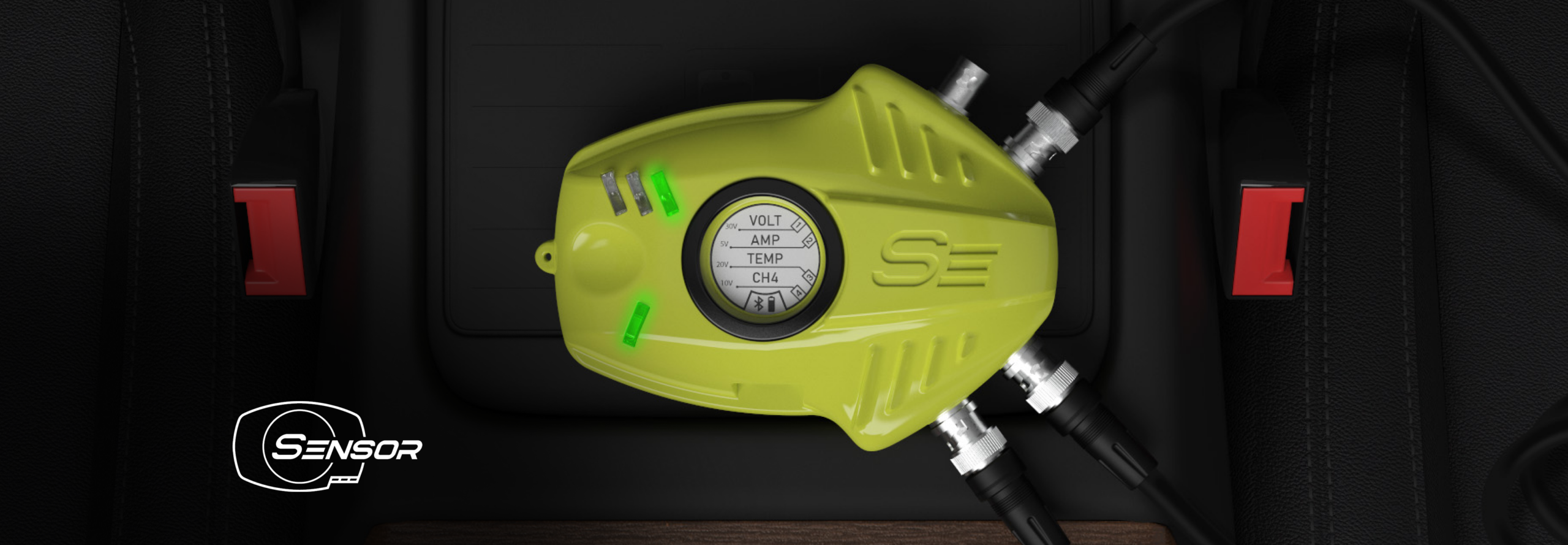

A high performance four channel analog recording unit opens new doors for system analysis. The four configurable channels can be logged and synchronized with data from other EZ systems. The signals are recorded with IOManager to establish relationships between this wide variety of different channels. The results can be visualized using the real-time processing, graphing and reporting modules.
- 4 Bi-polar Analog input channels
- Variable range ±5V, ±10V, ±20V, ± 30V
- Up to 2kHz
- 24-bit AD conversion
- Low Pass Filter
- Universal BNC connection
- Bluetooth Connection

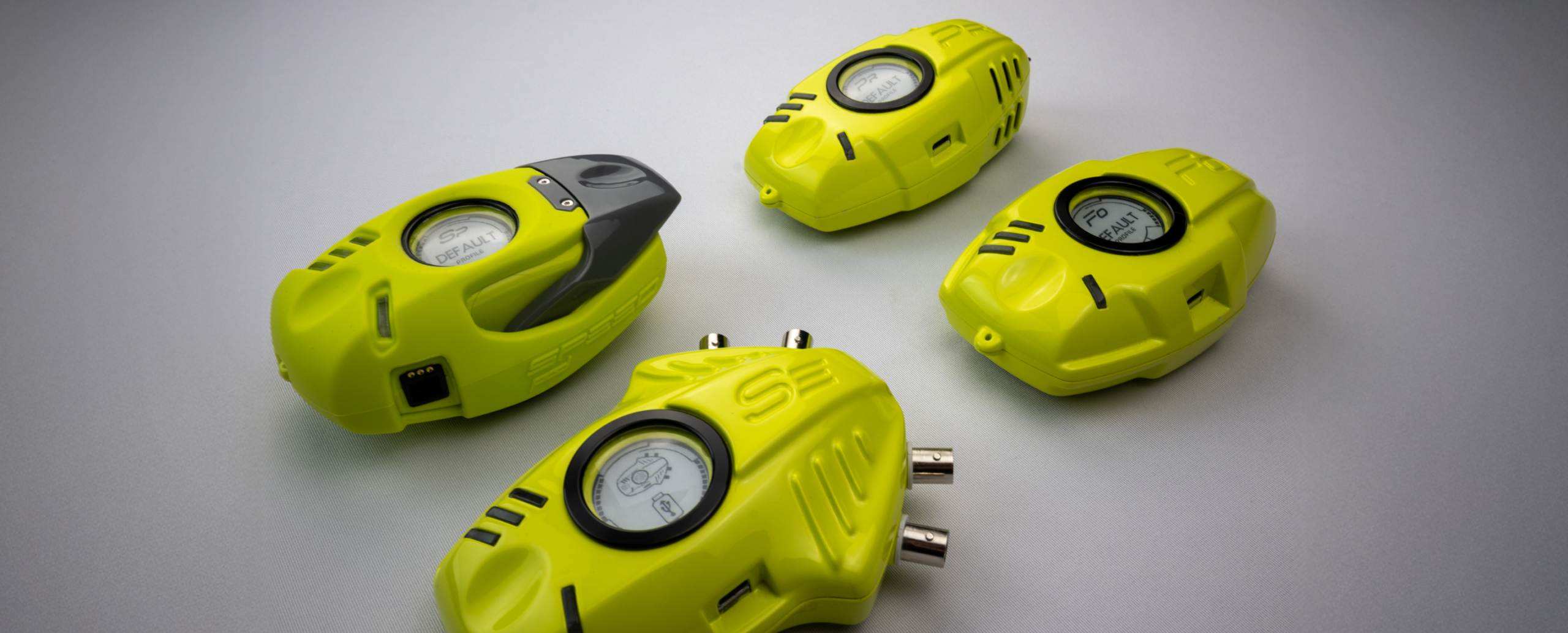

In combination with other Pods, such as Speed or ForcePod, the electrical activity is monitored on, for example, automated doors. Where the Voltages, Currents, Digital signals can be monitored together with movement of the door or force interaction. Determine responses between these physical actions and the behavior of the control logic and electrical drive system. This can include Force versus Current or Latency between a button press and actual movement or response.
- Electric doors drive system characteristics
- Measure Electric Power Consumption (Current and Tension)
- Quantity timing or latency between electrical and mechanical signals

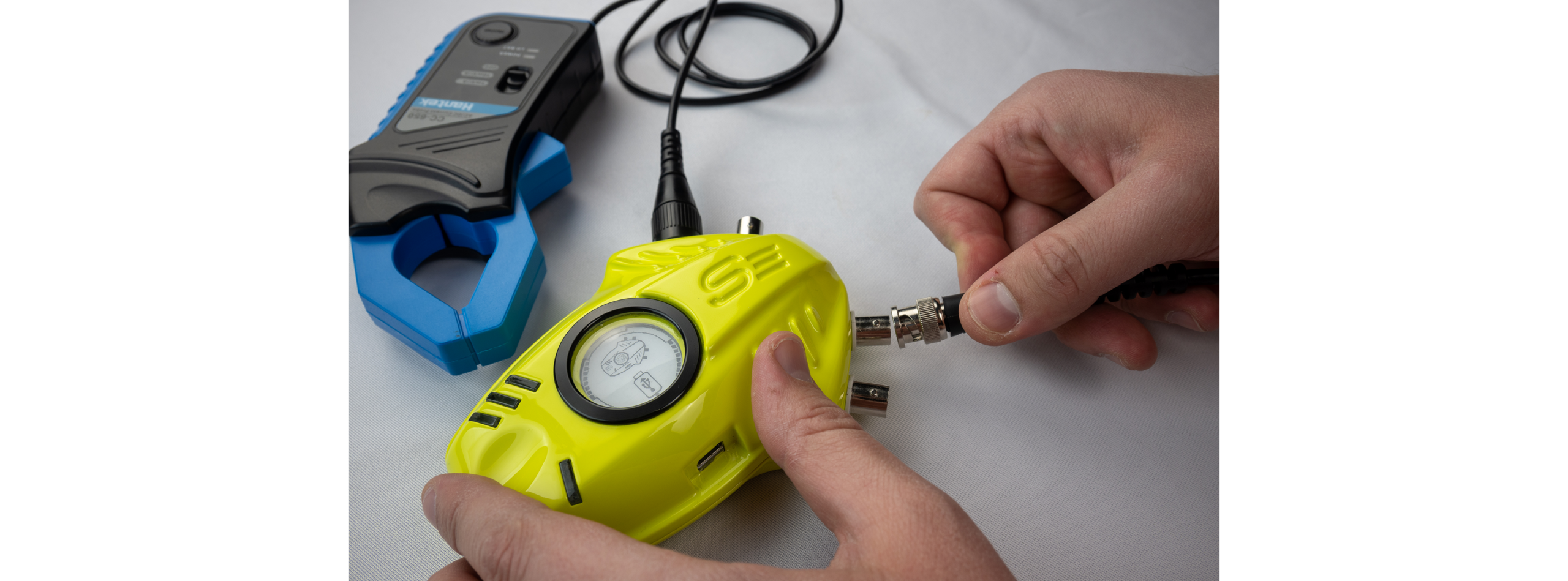

The analog recording channels can manage many different types of sensors. Each one can be connected and their output recorded. The device and current deployed sensors is configured in the user friendly MyPod software where electrical to physical conversion and unit assignment can be defined.
- Voltage Clamps
- Current Sensor
- Accelerometers
- Thermo-couples
- Buttons/switches

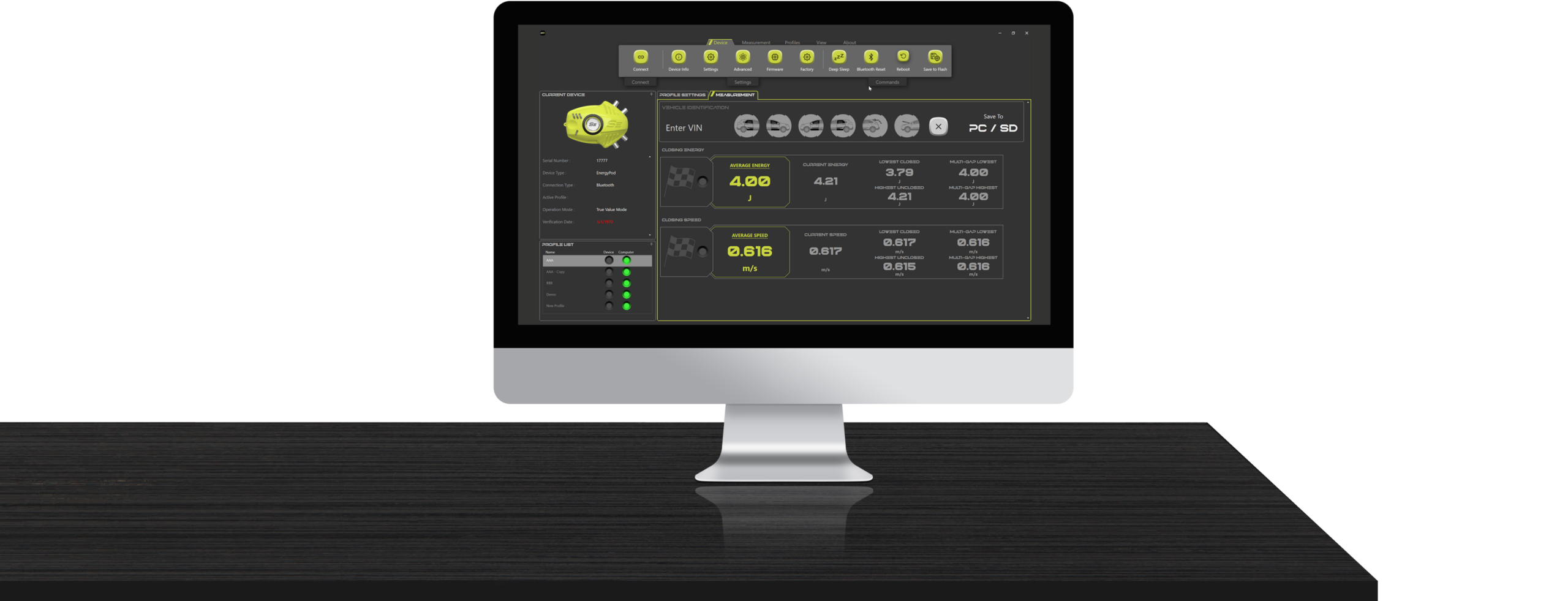

SensorPod is connected to IOManager for data recording and analysis. The multi-channel, multi-dimensional acquisition capabilities allow the user to chart complex systems for an efficient performance evaluation of a system.
- Synchronized Recording
- Real-time measurement and visualization
- Processing to obtain combined metrics such as energy, electrical power
- Relationship calculations, delay, latency

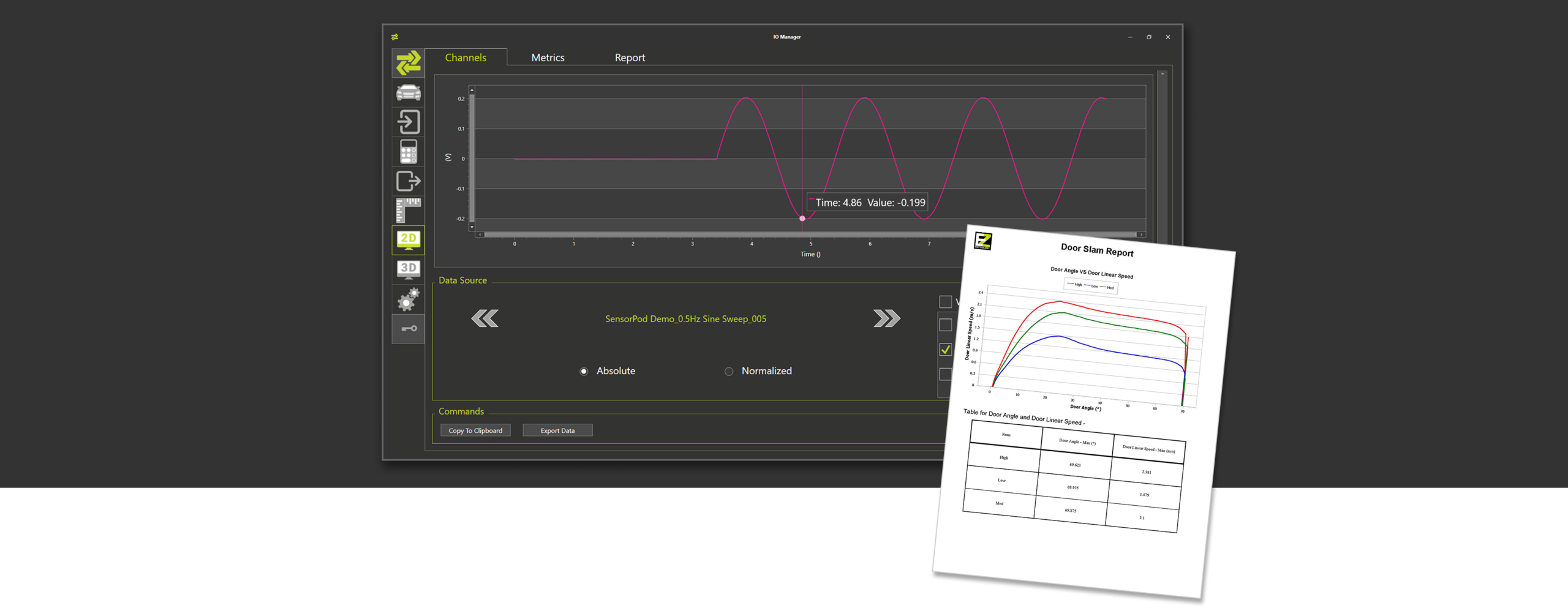

- Template based reporting of the behavior and performance
